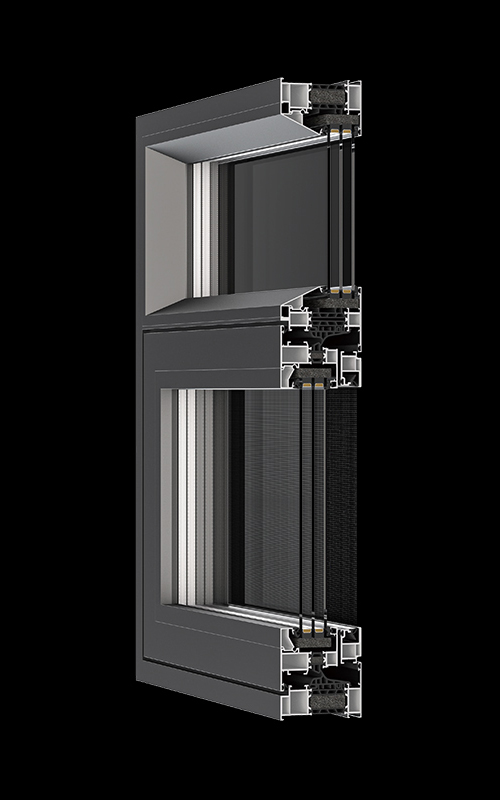

E9518
Internal Open Series
Product Configuration
Material: 6060-T66 Ultra High Precision Alloy
Wall Thickness: National Standard 1.8mm
Mesh: 0.5mm 14-mesh anti-theft stainless steel mesh
Hardware: Imported SI concealed hardware + Imported HOPPE (Hoppe) handle
Insulation Strip: Multi-cavity PA66 nylon insulation strip
Glass Slot: 33mm, 39mm
Core Selling Points
Uses high-precision 6060-T66 alloy, grade A aluminum, with enhanced strength.
Adopts a wide 45.3mm multi-cavity PA66 nylon insulation strip for improved performance and higher durability.
Soft and hard co-extruded foamed sealing strip with welded assembly process, unaffected by cold shrinkage, offering longer lifespan and preventing water leakage.
Frame and sash use corner injection and adhesive assembly techniques to enhance corner strength. Middle sealing uses injection adhesive, providing a more stable structure and better sealing performance.
Vertical equal temperature design effectively blocks air flow and heat conduction, ensuring consistent thermal insulation for the entire window. 45.3mm multi-cavity insulation strip combines aesthetics with functionality.
Concealed mesh structure allows for unobstructed view and protection without compromising the aesthetic. Optional mesh types to suit different needs, meeting anti-mosquito and protection requirements for various regions.
95mm wide interior frame provides a flat structure, enhancing the exterior appearance.
All visible frame surfaces feature a ribbed design, providing higher load-bearing capacity.
Adopts a wide 45.3mm multi-cavity PA66 nylon insulation strip for improved performance and higher durability.
Soft and hard co-extruded foamed sealing strip with welded assembly process, unaffected by cold shrinkage, offering longer lifespan and preventing water leakage.
Frame and sash use corner injection and adhesive assembly techniques to enhance corner strength. Middle sealing uses injection adhesive, providing a more stable structure and better sealing performance.
Vertical equal temperature design effectively blocks air flow and heat conduction, ensuring consistent thermal insulation for the entire window. 45.3mm multi-cavity insulation strip combines aesthetics with functionality.
Concealed mesh structure allows for unobstructed view and protection without compromising the aesthetic. Optional mesh types to suit different needs, meeting anti-mosquito and protection requirements for various regions.
95mm wide interior frame provides a flat structure, enhancing the exterior appearance.
All visible frame surfaces feature a ribbed design, providing higher load-bearing capacity.
